CDHG Industrial Part
Blade Vane Assembly
SKU / Part Number: VNE00774
No price shown - request a quote for availability and lead time.
Blade Vane Assembly for CDHG vane and shroud assembly.
Part Details

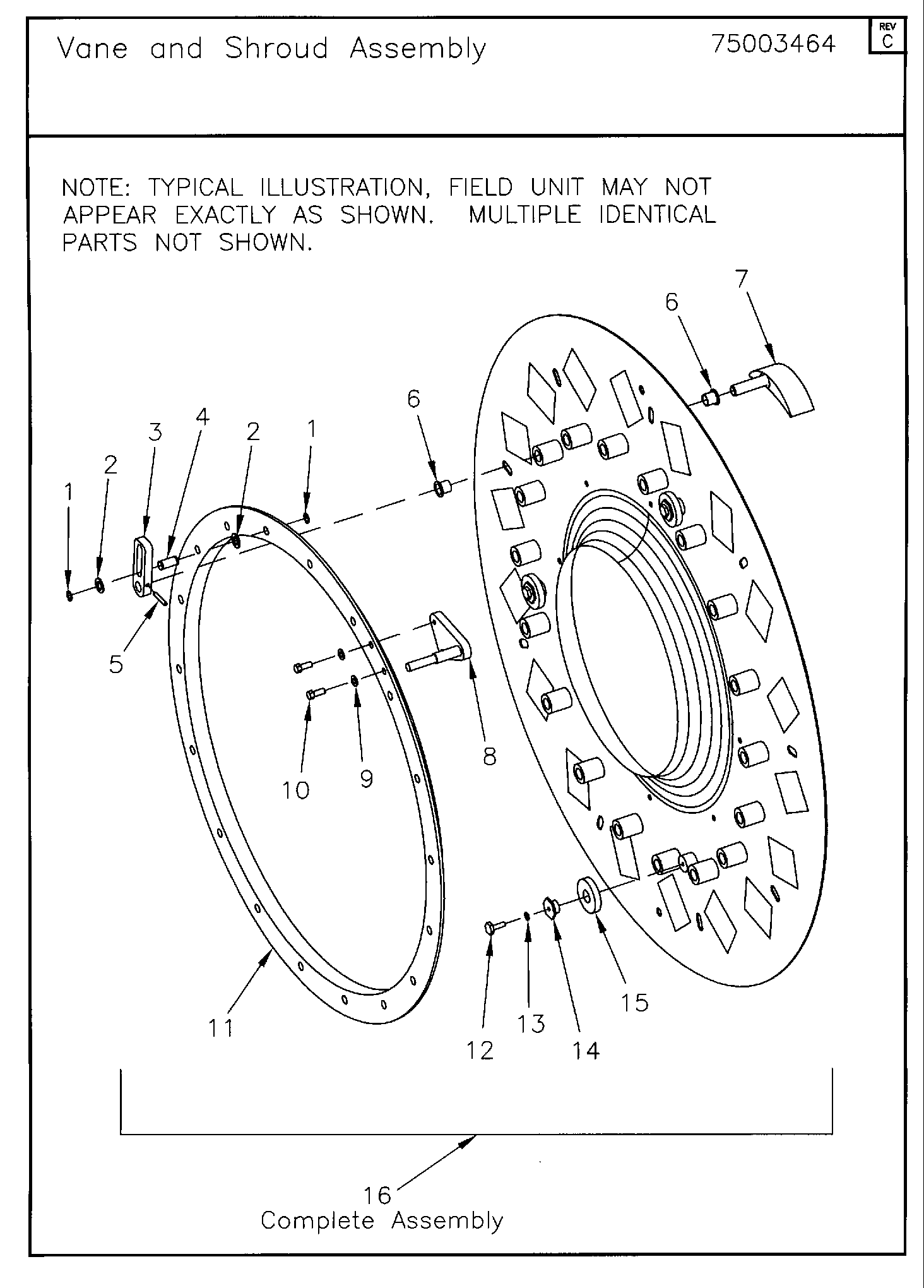

Blade Vane Assembly is listed in the VANE AND SHROUD ASSEMBLY section for the CDHG product family. The source catalog identifies this part as SKU VNE00774 with reference number 7 and BOM reference quantity 18. Original PDF description: VANE; BLADE, ASSEMBLY.
Related Parts from this Assembly
Shim Washer .880 x .505 x .050
SKU: WAS00491
Shim Washer .880 x .505 x .050 for CDHG vane and shroud assembly.
Lock Washer External Tooth, 5/16
SKU: WAS00606
Lock Washer External Tooth, 5/16 for CDHG vane and shroud assembly.
Flat Washer (TD),.25 ID x .49 OD
SKU: WAS00008
Flat Washer (TD),.25 ID x .49 OD for CDHG vane and shroud assembly.
Hex Hd Cap Screw Plated, 1/4-20 x 7/8, Grade 5
SKU: SCR00361
Hex Hd Cap Screw Plated, 1/4-20 x 7/8, Grade 5 for CDHG vane and shroud assembly.
Hex Head Screw 5/16-18 x 3/4IN.
SKU: SCR00023
Hex Head Screw 5/16-18 x 3/4IN. for CDHG vane and shroud assembly.
